Break The Bead, Pick Your Tool.

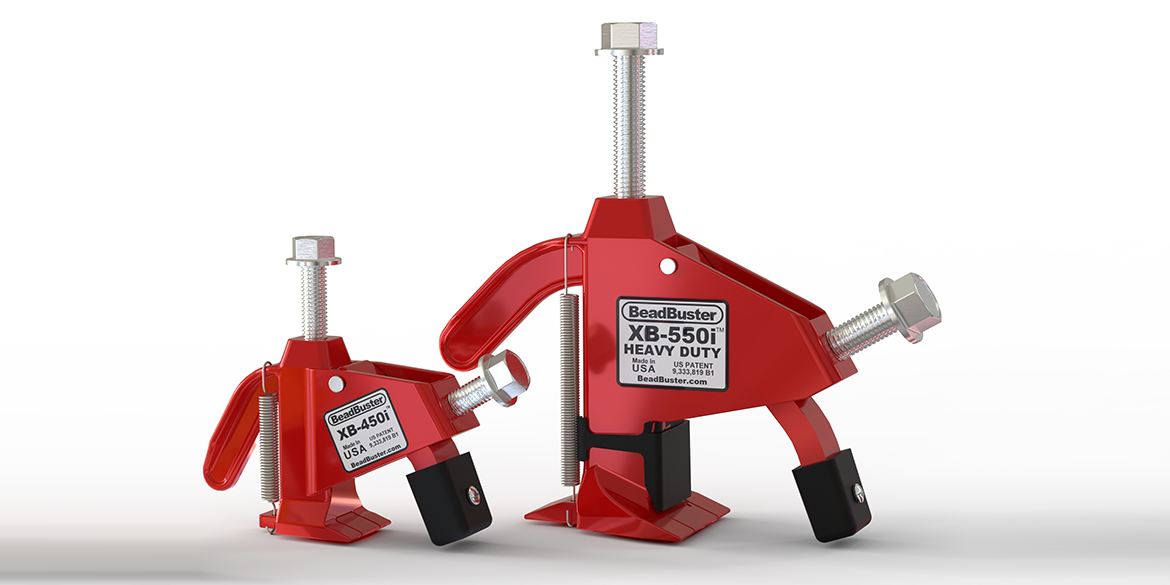

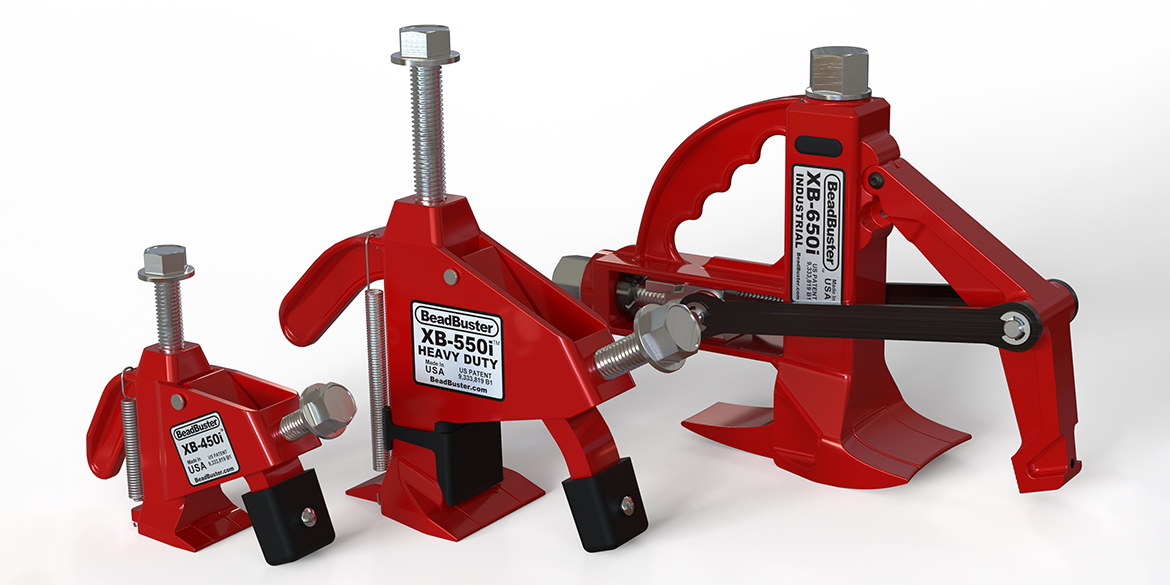

Three manual bead breakers for the jobs that make tire changes difficult. Choose the wheel and tire you are working on, get matched to the right BeadBuster, and add only the compatible essentials that help you finish the job.
Watch the bead break, every time
Real customers, real tires. The XB-450i pops stubborn beads loose in seconds.
Let the job choose the tool.
Answer a few clear questions about your application, wheel type, tire size, and rim condition. We will point you to the right BeadBuster and flag the accessory your setup may require. If your wheel is unusual or you are not certain about the fit, we will direct you to support instead of asking you to guess.
See BeadBuster in action.
Watch the tool in the kind of work it was built for. Start with the machine, wheel, or tire closest to your job, then see how the bead-breaking sequence works before you buy.
Every part has a job.
Start with the one idea the whole tool is built around, then tap any part to see what it does for you.

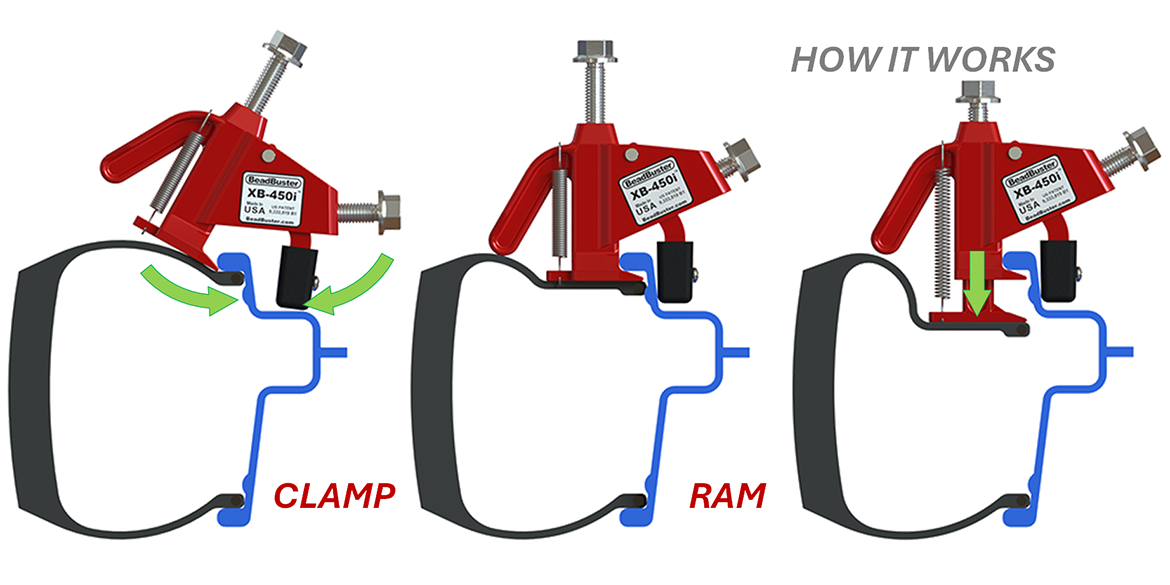

The Direction of Force Changes Everything.
BeadBuster applies force toward the clamping point. Typical knockoffs simply push downward.
Cast like a jet engine part. Built to outlast you.
You get a Tool Body and Ram Foot made by Investment Casting, the same high-precision method used to make jet engine turbine blades.
Grab a tool that's one solid piece with no welds. Nothing to crack under pressure.
Engineers ran it through FEA (Finite Element Analysis) to strip weight without losing strength: you carry less, and it still takes the hit.
Squeeze it hard and it holds: AISI 4140 steel, hardened to HRC 30, rated for 130,000 psi minimum tensile strength.
Translation: one solid piece of aircraft-grade steel. There is no weld to crack.
Others: stamped and welded plate: the welds are the weak point.
Pull the wrench. The bead pops. No hammer.
You get a Clamping Screw mounted in-line with the clamping direction: the patented design at the heart of this tool.
Every other screw-actuated tool mounts the screw sideways, so force "turns the corner" and mostly disappears. That's why those tools fight you to clamp all the way, and why you end up swinging a hammer.
Here, the screw pushes straight through: you get an incredible 4.2 tons at the Clamp Pad on the XB-450i. Clamp it with a wrench alone. No hammer, ever.
Translation: it clamps tight with a wrench alone, no hammering on the rim.
Others: perpendicular screws lose most of their force and usually need a hammer.
Never scratch a rim again.
Clamp down without worry: an injection-molded HDPE Clamp Pad shields the rim as you break the bead. Run it on aluminum, magnesium, even carbon fiber wheels with zero scratching or scuffing. It holds up on steel wheels for years, too.
Translation: safe on your aluminum, magnesium, or carbon fiber wheels, not just steel.
Others: bare steel jaws that scuff and gouge expensive wheels.
Crowned tips that save your threads.
Both custom screws have crowned, rounded tips, so when the metal naturally mushrooms from pushing hard on the Clamp Arm and Ram Foot, it never touches the Tool Body's threads. You keep smooth, working threads for years, not months.
Translation: years of heavy impact-wrench use won't ruin the threads.
Others: flat-tipped screws mushroom and chew up the threads over time.
One-piece grip that never works loose.
Get a secure grip every time: the handle is cast right into the Tool Body, so you can drive the feet under the rim lip with full force and no slip.
Translation: the handle is part of the tool body, so it can never work loose.
Others: bolted-on or welded handles that loosen and twist.
Grade-8 screws built for impact wrenches.
You get custom 1/2"-13 UNC fully threaded bolts with 3/4" Flanged Hex Heads, sized so your socket never covers them, so you always see exactly how far you've traveled.
Both screws are Grade-8 steel: HRC 36 hardness, 150,000 psi minimum tensile strength. That means you can run your impact wrench on it without a second thought.
Translation: put your impact gun on it and go: the screws are built for it.
Others: standard bolts that round off, gall, or shear under an impact wrench.
Slotted for strength. Nothing left to snap.
You get a custom high-strength alloy Clevis Pin that barely does any work: slotted holes in the Tool Body let the Clamp Arm brace directly against the body, so the pin never takes the brunt of the force. Fewer parts under stress means one less thing to fail on you.
Translation: there's no pin to snap on you mid-job.
Others: a single hinge pin carries the load, and snaps.
9.0 tons of ram force you can't strip.
You get 1" of thread engagement (double the nominal 1/2" diameter), so the Ram delivers a peak force of 9.0 tons without stripping.
Keep the threads greased and you'll shear the Grade-8 bolt (~83 ft-lbs) long before you ever touch thread failure. That's the point: a $12 bolt breaks, not your tool.
Translation: the bolt breaks before the tool's threads ever do. A $12 bolt is a 5-minute fix, not a reason to buy a new tool.
Others: strip the threads and the whole tool is scrap.
The Direction of Force Changes Everything.
BeadBuster applies force toward the clamping point. Typical knockoffs simply push downward.
Cast like a jet engine part. Built for heavy duty.
You get a Tool Body and Ram Foot made by Investment Casting, the same high-precision method used to make jet engine turbine blades.
It's one solid piece with no welds, so there is nothing to crack when you lean on it with big tires.
Engineers ran it through FEA (Finite Element Analysis) to shave every ounce that wasn't earning its keep: you carry a heavy-duty tool that still fits in a truck box.
Squeeze it hard and it holds: AISI 4140 steel, hardened to HRC 30, rated for 130,000 psi minimum tensile strength.
Translation: one solid piece of aircraft-grade steel. There is no weld to crack.
Others: stamped and welded plate: the welds are the weak point.
8.1 tons at the clamp. No hammer.
You get a Clamping Screw mounted in-line with the clamping direction: the patented design at the heart of every BeadBuster.
Other screw-actuated tools mount the screw sideways, so force "turns the corner" and mostly disappears. That's why they fight you on stiff truck and ag beads, and why you end up swinging a hammer.
Here, the screw pushes straight through: you get 8.1 tons at the Clamp Pad on the XB-550i HD. Clamp it with a wrench alone. No hammer, ever.
Translation: it clamps tight on big, stiff beads with a wrench alone.
Others: perpendicular screws lose most of their force and usually need a hammer.
Big tires. Zero rim scratches.
Clamp down without worry: an injection-molded HDPE Clamp Pad shields the rim as you break the bead. Use it on painted ag rims, aluminum truck wheels, or plain steel without scratching or scuffing the finish.
Translation: safe on painted and aluminum wheels, not just bare steel.
Others: bare steel jaws that scuff and gouge expensive wheels.
Crowned tips that save your threads.
Both custom screws have crowned, rounded tips. When the metal naturally mushrooms from pushing hard on the Clamp Arm and Ram Foot, the crown keeps it clear of the Tool Body's threads, so wear never turns into stripped threads.
Translation: years of heavy impact-wrench use won't ruin the threads.
Others: flat-tipped screws mushroom and chew up the threads over time.
One-piece grip that never works loose.
The handle is cast right into the Tool Body, so you can plant your grip, drive the sidewall down, and seat the feet under the rim lip without the tool shifting on you.
Translation: the handle is part of the tool body, so it can never work loose.
Others: bolted-on or welded handles that loosen and twist.
One ram foot. Four ways to fit.
You get a 2-sided Ram Foot plus a snap-on Spacer, which gives you 4 effective configurations. Set it up for rim lip depths from 9/16" to over 1.25", from 9" ATV wheels up to large 1-piece ag, industrial, and OTR wheels.
Translation: one tool covers ATV wheels through big ag and OTR rims.
Others: a fixed foot that only fits a narrow range of rims.
A hardened clamp arm built for big tires.
You grip the rim hard, job after job, without the arm ever giving out: the Clamp Arm is AISI 4140 steel, hardened to HRC 50, rated for 250,000 psi minimum tensile strength.
Translation: the arm holds its shape on the stiffest beads instead of bending out of spec.
Others: thin flat bar stock that bends the first time it is loaded hard.
Grade-8 screws built for impact wrenches.
You get custom 5/8"-11 UNC fully threaded bolts with 15/16" Flanged Hex Heads, sized so your socket never covers them, so you always see exactly how far you've traveled.
Both screws are Grade-8 steel: HRC 36 hardness, 150,000 psi minimum tensile strength. That means you can run your impact wrench on it without a second thought.
Translation: put your impact gun on it and go: the screws are built for it.
Others: standard bolts that round off, gall, or shear under an impact wrench.
Slotted for strength. Nothing left to snap.
You get a custom high-strength alloy Clevis Pin that barely does any work: slotted holes in the Tool Body let the Clamp Arm brace directly against the body, so the pin never takes the brunt of the force. Fewer parts under stress means one less thing to fail on you.
Translation: there's no pin to snap on you mid-job.
Others: a single hinge pin carries the load, and snaps.
14.9 tons of ram force you can't strip.
You get 1.5" of thread engagement (2.4x the nominal 5/8" diameter), so the Ram delivers a peak force of 14.9 tons without stripping.
Keep the threads greased and you'll shear the Grade-8 bolt (~169 ft-lbs) long before you ever touch thread failure. That's the point: a replaceable bolt breaks, not your tool.
Translation: the bolt breaks before the tool's threads ever do. Swap the bolt and you're back to work.
Others: strip the threads and the whole tool is scrap.
More Force Than a Hydraulic. Half the Weight.
The XB-650i outclamps hydraulic bead breakers by more than 10x, at 13 lbs with no pump or hoses.
Zero welds. Cast in one solid piece.
You get a Tool Body made by Investment Casting, the lost-wax method used to make jet engine turbine blades. There are zero structural welds, so there is nothing to crack under industrial loads.
Engineers ran it through FEA (Finite Element Analysis) to put steel only where the force goes: you get hydraulic-class force in a 13 lb tool you can carry with one hand.
Squeeze it hard and it holds: AISI 4140 steel, hardened to HRC 30, rated for 130,000 psi minimum tensile strength.
Translation: one solid piece of aircraft-grade steel. There is no weld to crack.
Others: welded steel bodies, where the welds are the weak point.
15.7 tons at the clamp. No pump.
You get a Clamping Screw mounted in-line with the clamping direction: the patented design at the heart of every BeadBuster.
Drive it with your cordless impact and you get 15.7 tons at the Clamp Pad. That's over 10x the clamp force of a typical Combi, Maxi, or Euro-style hydraulic breaker, with no pump, no hoses, and no air line to drag around the shop or the job site.
Translation: more clamp force than a hydraulic, powered by the impact you already own.
Others: hydraulic breakers top out around 1.5 tons of clamp force and need a pump.
Clamp hard without marking the rim.
An injection-molded HDPE Clamp Pad sits between the tool and the rim, so you can clamp at full force on multi-piece wheels without scratching or scuffing the flange.
Translation: full clamping force without marking the wheel.
Others: bare steel jaws that scuff and gouge the flange.
Acme threads that take the hammering.
You get 3/4"-10 Acme threads, the same square-shouldered thread form used on heavy-duty presses and jacks, running against oil-impregnated thrust bearings.
Acme threads carry big loads without galling, and the thrust bearings cut friction, so more of your impact's torque turns into force on the bead.
Translation: heavy-duty threads made to run under an impact wrench all day.
Others: standard V-threads that gall and wear out under heavy loads.
A handle that's part of the frame.
The handle is cast right into the Tool Body and doubles as its structural spine. You get a solid grip to position the tool, and it adds strength instead of being one more part to come loose.
Translation: the handle is part of the tool body, so it can never work loose.
Others: bolted-on or welded handles that loosen and twist.
AR500 armor-plate clamp straps.
The Clamp Straps are AR500 ultra-high-strength steel, the same grade used for armor plate and shooting targets: HRC 52 hardness and 240,000 psi tensile strength.
They hold their shape at 15.7 tons, job after job.
Translation: the clamp holds its shape at full force instead of stretching out of spec.
Others: mild steel parts that bend or stretch under industrial loads.
Heavy hex screws built for impact wrenches.
You get 1-1/8" heavy hex heads that take standard sockets, on ASTM A574 alloy steel screws: HRC 41 hardness and 170,000 psi minimum tensile strength.
Built to be driven with a 1/2" cordless impact. Don't over-torque it: let the tool do the work.
Translation: put your cordless impact on it and go: the screws are built for it.
Others: standard bolts that round off or shear under an impact wrench.
Two hinge positions. No pin to snap.
The Clamp Arm hinge is journal-cast into the Tool Body, so there is no pin to snap. Choose from 2 hinge positions: the upper one for typical 3-piece flanges and the lower one for wider flanges.
Translation: one tool fits more wheels, with no hinge pin to fail.
Others: a fixed hinge on a single pin that carries the load, and snaps.
28.7 tons of ram force you can't strip.
You get 1.5" of thread engagement in a hardened 4140 Ram Nut, so the Ram delivers a peak force of 28.7 tons through 4" of stroke without stripping.
Keep the threads greased and you'll shear the screw (~362 ft-lbs) long before you ever touch thread failure. That's the point: a replaceable screw breaks, not your tool.
Translation: the screw breaks before the threads ever do. Swap it and you're back to work.
Others: strip the threads and the whole tool is scrap.
Flip the foot: Combi or Maxi mode.
The Ram Foot is reversible with a curved profile. Flip it to Combi mode (1.55") or Maxi mode (2.5") to match the wheel in front of you. One tool covers 1, 2, and 3-piece wheels, the jobs that used to need a Combi, Maxi, and Euro-style hydraulic.
Translation: one manual tool does the job of three hydraulic breakers.
Others: a separate hydraulic breaker for each wheel type.
Built different. On purpose.
| Competition | ||||
|---|---|---|---|---|
BeadBuster
BeadBusterXB-450i |
Clamp and ram copyCompetition |
Plier typeCompetition |
Shoe and leverCompetition | |
| Manufacturer | Made in USA, USA small business | Made in China | Made in China | Made in China |
| Design | Updated and USA patented | Decades old, copied everywhere | Decades old, copied everywhere | Decades old, copied everywhere |
| Mechanism | Clamp and ram, pushes on the tire bead | Clamp and ram | Plier type, pushes near the tire bead | Shoe and lever, pushes on the sidewall |
| Application | Any tire up to 32 inches | Large wheels only, tractor and similar | Limited to a small range of rim diameters, around 15 inches | Limited to a small range of tire widths |
| Portability | 7 x 6 x 2 inches, 3 lbs | 6 x 4.5 x 14 inches, 10 to 12 lbs | 20 x 3.5 x 3.5 inches, 5 lbs | Must be floor mounted |
| Rim protection | Padded clamp arm | None, damages rims | None, damages rims | None, damages rims |
| Construction | Investment casting, premium unibody | Welded parts, poor quality | Welded parts, quality is good | Welded parts, low quality |
| Material | Hardened 4140 chrome-moly steel | Mild steel and cast iron | Mild steel | Mild steel |
| Clamp force | Correct direction, easy to mount | Bad direction, difficult to mount | N/A | N/A |
| Ram hex | Custom grade 8 bolts, very strong | Hex nut pinned to stud, breaks easily | N/A | N/A |
| Impact wrench | Can use | Cannot use | N/A | N/A |
| Competition | ||||
|---|---|---|---|---|
BeadBuster
BeadBusterXB-550i HD |
Clamp and ram copyCompetition |
Plier typeCompetition |
Shoe and leverCompetition | |
| Manufacturer | Made in USA, USA small business | Made in China | Made in China | Made in China |
| Design | Updated and USA patented | Decades old, copied everywhere | Decades old, copied everywhere | Decades old, copied everywhere |
| Mechanism | Clamp and ram, pushes on the tire bead | Clamp and ram | Plier type, pushes near the tire bead | Shoe and lever, pushes on the sidewall |
| Application | Any tire up to 32 inches | Large wheels only, tractor and similar | Limited to a small range of rim diameters, around 15 inches | Limited to a small range of tire widths |
| Portability | 7 x 6 x 2 inches, 3 lbs | 6 x 4.5 x 14 inches, 10 to 12 lbs | 20 x 3.5 x 3.5 inches, 5 lbs | Must be floor mounted |
| Rim protection | Padded clamp arm | None, damages rims | None, damages rims | None, damages rims |
| Construction | Investment casting, premium unibody | Welded parts, poor quality | Welded parts, quality is good | Welded parts, low quality |
| Material | Hardened 4140 chrome-moly steel | Mild steel and cast iron | Mild steel | Mild steel |
| Clamp force | Correct direction, easy to mount | Bad direction, difficult to mount | N/A | N/A |
| Ram hex | Custom grade 8 bolts, very strong | Hex nut pinned to stud, breaks easily | N/A | N/A |
| Impact wrench | Can use | Cannot use | N/A | N/A |
More force. Less weight. No pump.
The XB-650i delivers over 10x the clamp force and twice the ram force of hydraulic breakers, at under half the weight and with no pump or hoses to haul around.
| Competition | |||||
|---|---|---|---|---|---|
BeadBuster
XB-650iManual, impact driven |
Pneu-TekManual |
Combi styleHydraulic |
Maxi styleHydraulic |
Euro styleHydraulic | |
| Type | Manual (impact wrench) | Manual | Hydraulic | Hydraulic | Hydraulic |
| Price *w/ hydraulic pump | $799 | ESCO #20429$550 | ESCO #10101*$1,400AME #11010*$1,490 | ESCO #10102*$1,535AME #11020*$1,570 | ESCO #10107*$2,075AME #11076$2,000 |
| Wheel types | 1, 2 & 3-pc wheels | Large 1-pc wheels | 1, 2 & 3-pc wheels | 1, 2 & 3-pc wheels | 1, 2 & 3-pc wheels |
| Weight | 13.0 lbs | 16 lbs | 36 lbs | 38 lbs | 32 lbs |
| Size | 11″ x 8.8″ x 3.2″ | 12″ x 11″ x 6″ | 18″ x 12″ x 4.75″ | 18″ x 12″ x 4.75″ | 22.5″ x 13″ x 4.4″ |
| Made in | USA | China | China | China | China |
| Construction | 4140 hardened investment casting | Welded steel | Steel casting | Steel casting | Aluminum casting |
| Warranty | 3 years | 1 year | 3 years | 3 years | 3 years |
| Clamping action | Inline with clamping direction | Perpendicular to clamping direction | Inline with clamping direction | Inline with clamping direction | Inline with clamping direction |
| Clamp hinge | Adjustable, 2 positions | Fixed | Fixed | Fixed | Adjustable |
| Foot length | 1.55″ & 2.50″ | 1.90″ | 1.40″ | 2.50″ | 3.25″ |
| Clamp opening | 4.75″ | 3.00″ | 5.70″ | 4.20″ | 5.00″ |
| Ram stroke | 4.00″ | 5.00″ | 4.00″ | 4.00″ | 4.25″ |
| Max clamp force | 15.7 tons | - | 1.5 tons | 1.5 tons | 1.5 tons |
| Max ram force | 28.7 tons | - | 13.8 tons | 13.8 tons | 13.8 tons |
*Price shown includes the required hydraulic pump. Competitor prices and specs are for reference and may change.
Trusted where the work gets done.
The strongest proof comes from people using BeadBuster on real machines, real wheels, and real tire changes. Explore approved demonstrations, customer feedback, and field-tested setups from the BeadBuster community.
Keep the job moving.
Find instructions, tire-changing guidance, fit help, maintenance information, and replacement parts for the BeadBuster you already own.Parts and rebuild items are here when you need them. New shoppers can stay focused on choosing the right tool first.
